Specification
Motor
AC60V 5000W BRUSHLESS Differential Speed Direct Drive Motor
Battery
Rechargeable 60V 52Ah (5 x 12v in casing)
Max Speed
Maximum speed: 50 km / h
Eco Mode
Eco Speed (electronically limited) 100% & 50% Power
Body
Fairing and moulded footrests: helps prevent contact with moving parts
Power
Impressive torque resulting from the AC power of the 5000w Brushless Motor (DIRECT DRIVE)
Battery Life
Battery life between charges 40-50 km approx. (depending on field conditions, weight and flexibility of control) and at low speed
Charging
Recharging time empty batteries 8-10 hours (Includes the Charger to connects directly into the quad)
Wheels/Tyres
Alluminium Hubs and Rubber off-road tyres (Size: Rim 10″ / Tyre 22″) larger tyres giving a greater ground clearance for rougher terrain
Switch
FWD / NEUTRAL / REV by electrical switch
Drive
Direct Drive transmission with rear differential
Towing
Tow ball fitted for trailer use (Max Tow Load 1 ton/1000 KG)

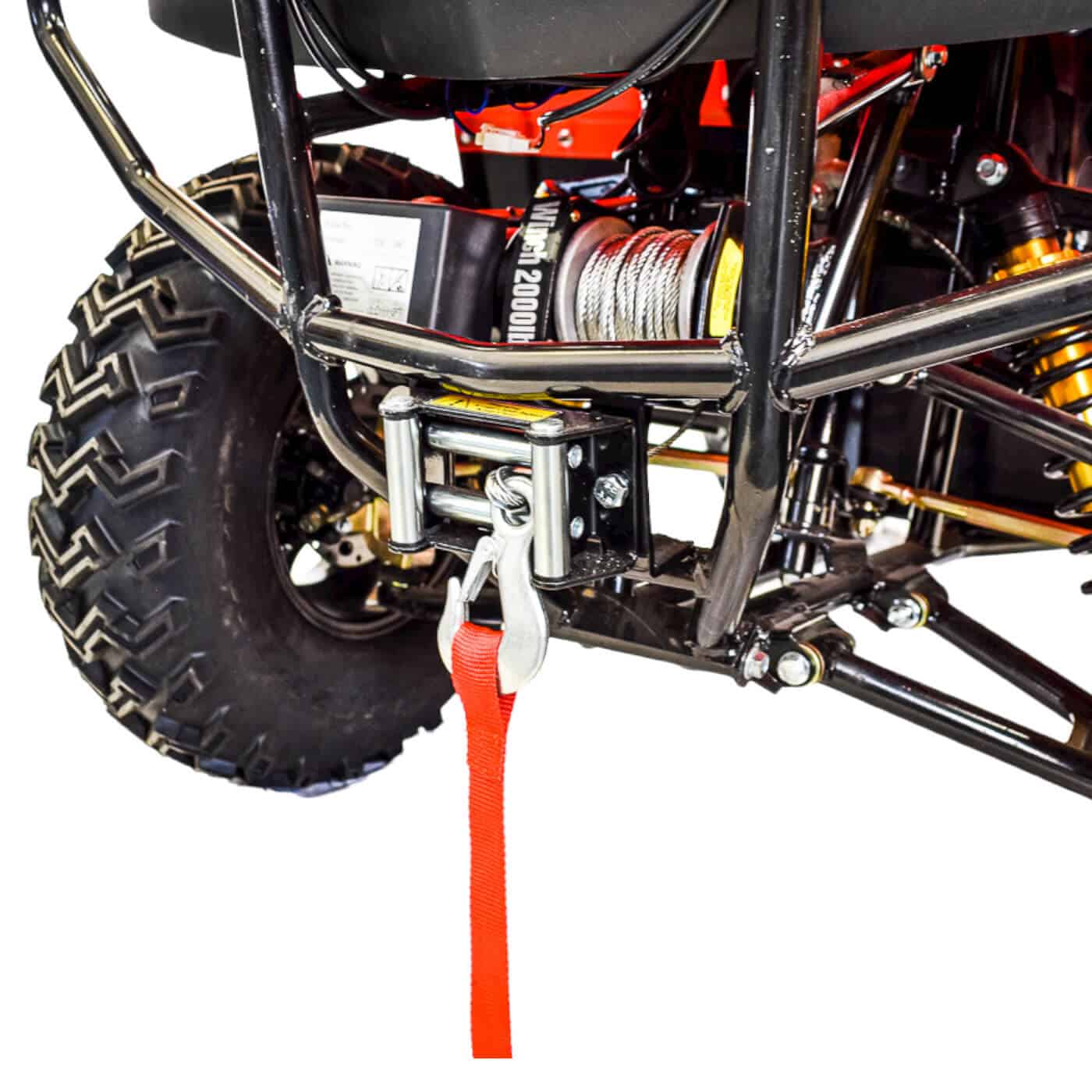

Winch
Max Winch Load 1 ton/1000 KG
Display
Counter digital backlit night shift – Multiple Displays (speed, kms, battery level …)
Lights
Headlights, Rear light / Brake light, Front/Rear Indicators (Built In)
Horn
Horn switch on the handlebars
Accelerator
Accelerator handle – new generation flexible and robust
Suspension
Hydraulic Suspension – front (2) Rear (1)
Transmission
Shaft Drive
Brakes
Hydraulic Brake discs – Front Hand Brake (2) / Rear Foot Brake (2)
Weight
Total Weight 275 kg
Dimensions
Quad Dimensions (LxWxH): 1960 mm x 1120 mm x 1260 mm
Seat Height
Seat Height (from ground) – 820 mm
Ground Clearance
172 mm
Max Rider Weight
Maximum rider weight – 200kg (approx 25 stone)
This is a fantastic machine. So smooth, powerful and of course quiet. It feels like riding a 'chopper' and it's very simple to use. My girls love it too and use it to dump the horse poop- which it doesn't struggle at all with. Brilliant!
